All-in-One Revit Template

A Revit project template that arrives with its sheets, title blocks, annotation styles and electrical set already built.

REVIT TEMPLATE · PDF

$69.90
  • Delivered by email in minutes
  • Commercial licence included
  • 14-day guarantee

Units: metric only. Working in imperial? Email us before you buy and we will tell you exactly what the file contains.

What you'll get

  1. The Revit template

    Revit 2019 or later

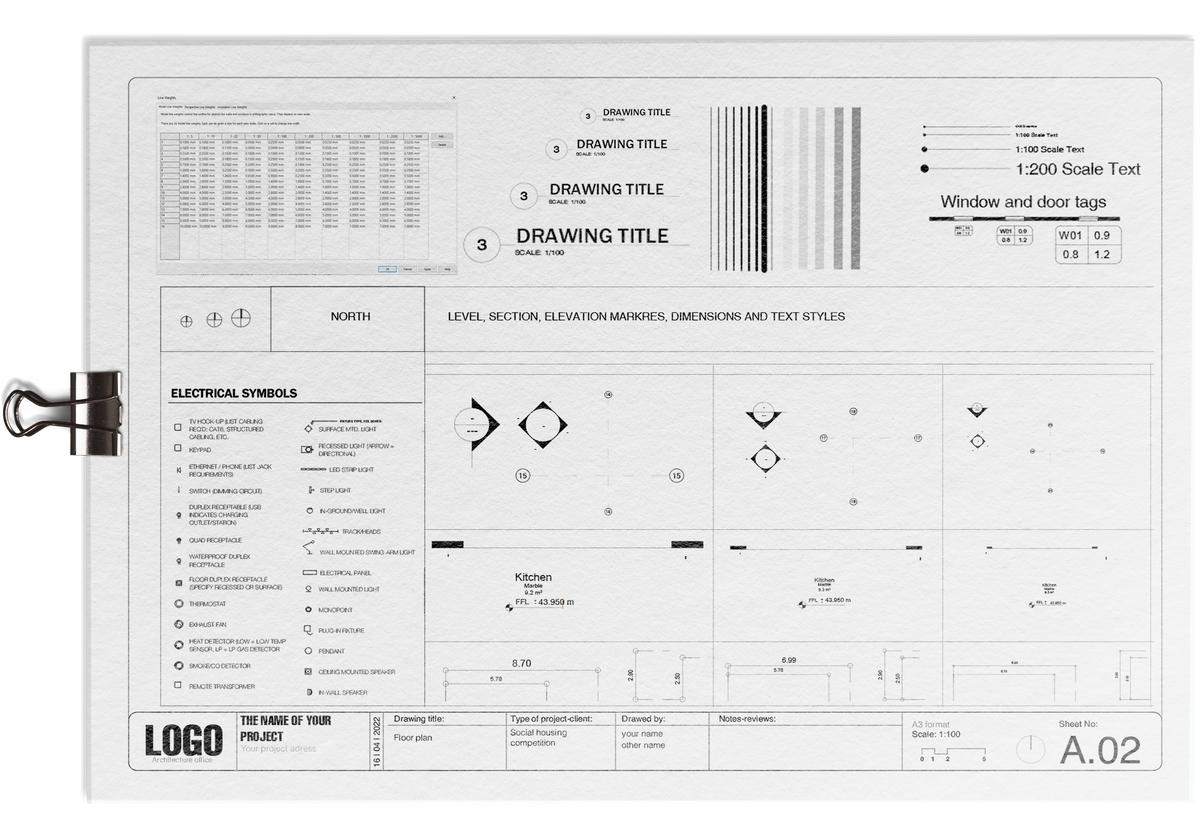

    • General notes sheet: project information, symbol legend, abbreviations, drawing list
    • Dimension styles in 5 scales, horizontal and vertical
    • Section and elevation markers in 4 scale styles
    Show all 9 items
    • Automatic zone tags with area and finish type, in 4 scale sizes
    • Level, section and elevation markers and north points, in every scale
    • Dynamic scale bars and north arrows for the sheets
    • Text and annotation styles for every scale

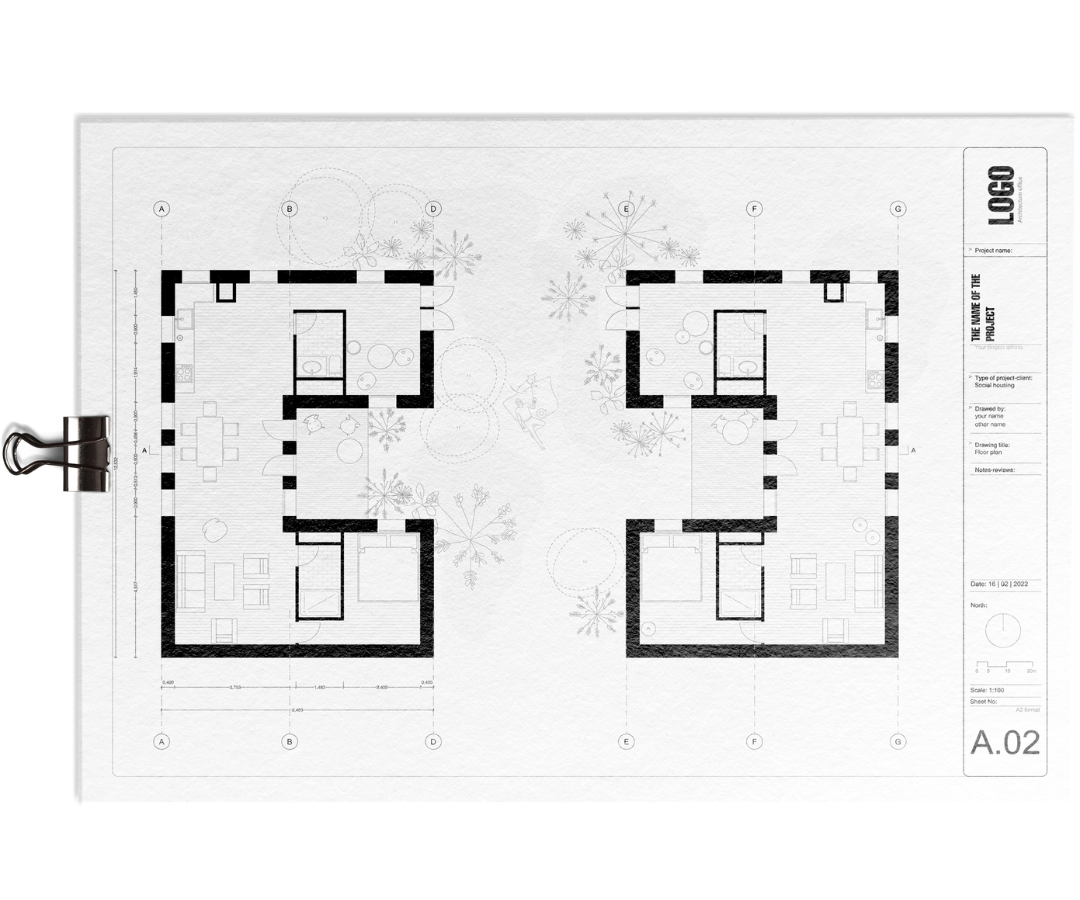

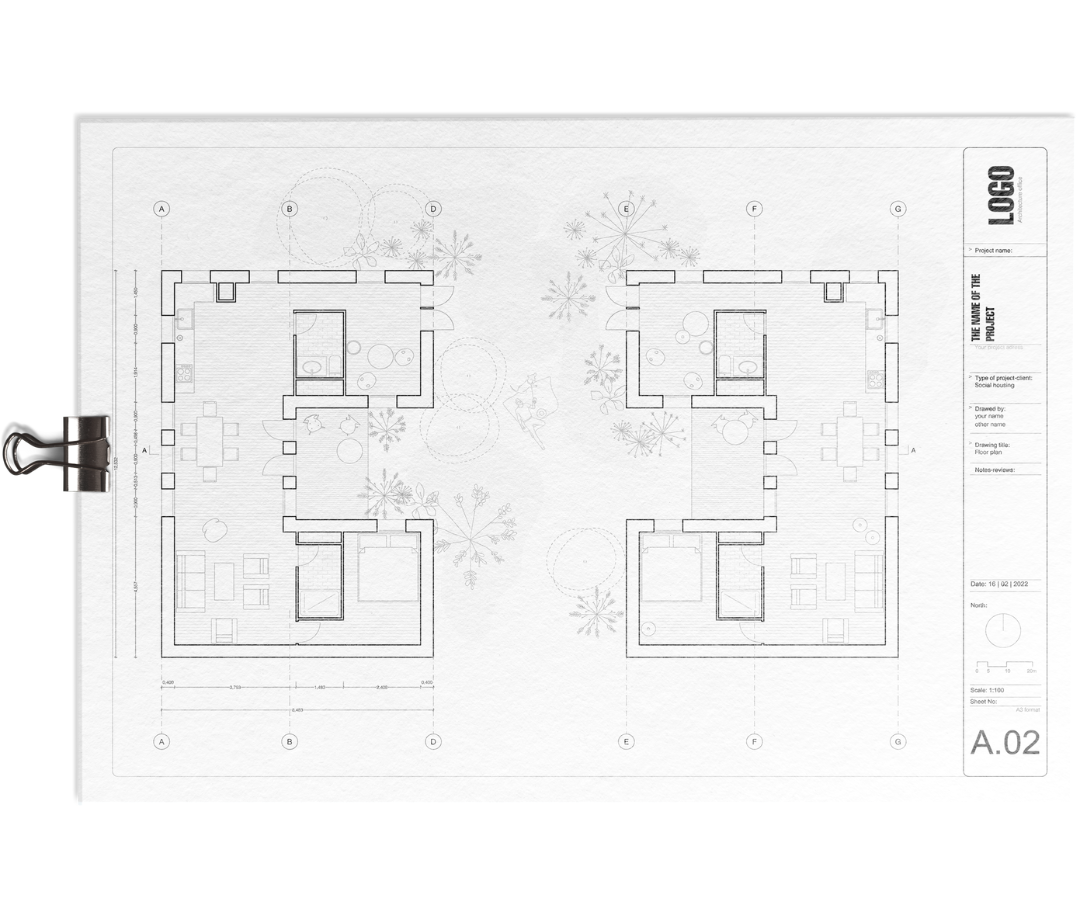

    • A sample project: small floor plan and line layout
    • An electrical template: sample plan, 30 electrical and lighting components (outlets, recessed and surface lights, fans, smoke detectors, panels), symbol legend, general notes, lighting fixture schedule, electrical and RCP view templates

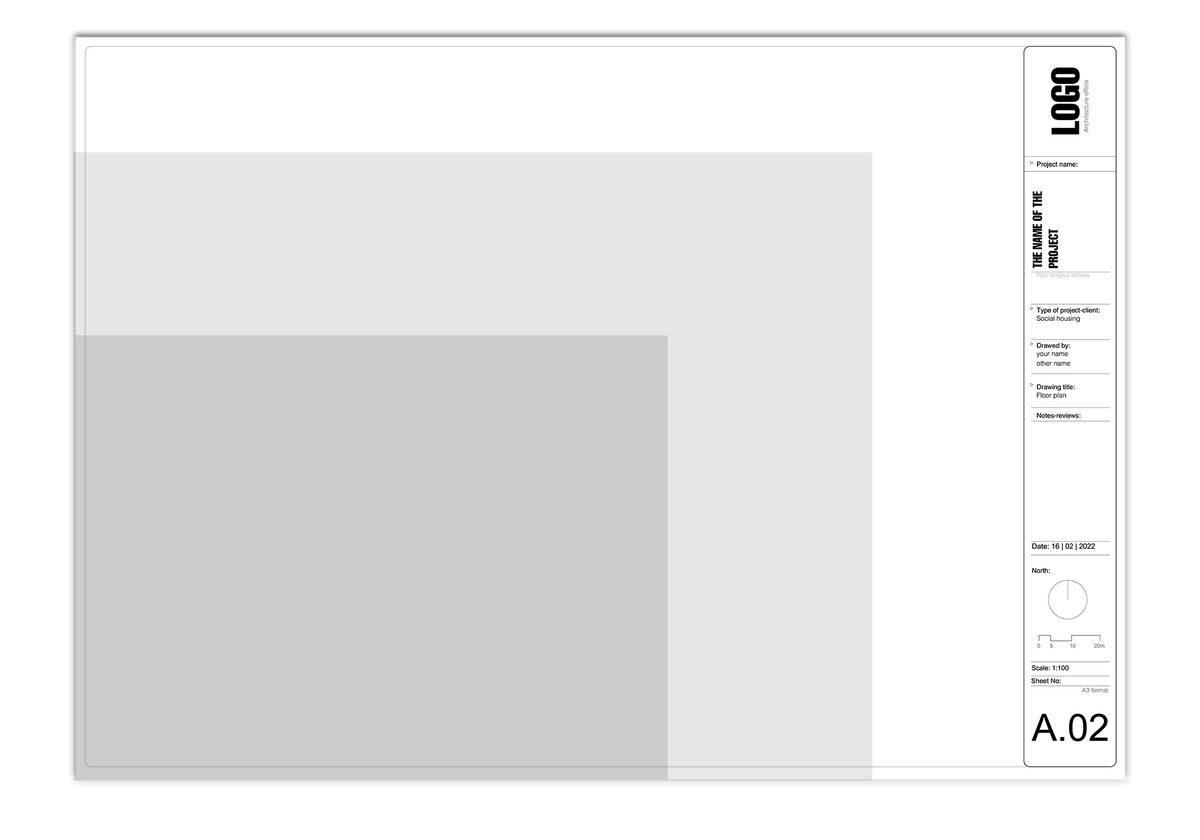

  2. Sheets and title blocks, ready to plot

    • Metric, landscape: A1 (841 × 594), A1 cover sheet, A2 (594 × 420), A3 (420 × 297)
    • Imperial, landscape: Arch D (36" × 24"), Arch D cover sheet, Arch C (24" × 18"), Tabloid (17" × 11")

  3. The starter guide

    PDF

    Installation and styling instructions: how to use the template step by step, with tips.

    You need Revit installed. This is a project template, not a course.

Everything arrives in one ZIP.

Why it is worth $69.90

Documentation, already set

Annotation styles, dimension styles, title blocks and sheets take time to set up on every Revit project. They are already here.

An electrical set included

A second template with 30 components, its symbol legend, its notes and its fixture schedule.

Sheets in both sheet systems

Metric A1, A2 and A3, and imperial Arch D, Arch C and Tabloid. Add your logo and issue.

What changes on Monday morning

  • Without: Dimension styles rebuilt for every scale With: Dimension styles in 5 scales, ready to use
  • Without: Writing the general notes sheet again With: General notes, symbol legend and drawing list already set up
  • Without: Line weights and text that drift With: One set of graphic styles
  • Without: A new title block on every job With: A title block in six sheet sizes, ready for your logo

Who it is for

  • Architecture studentsHand in drawings that look like an office produced them.
  • FreelancersLook established from your first client.
  • Small practicesAn office standard without building your own template first.
  • Project leadsOne drawing style across everyone's files.

Compatibility

Software
Revit
Versions
2019 or later
Platform
Windows (Revit does not run natively on macOS)
Units
Metric only. Working in imperial? Email us before you buy and we will tell you exactly what the file contains.
Formats
Revit template · PDF guide
Delivery
By email, minutes after payment. One ZIP.
Licence
Commercial, one seat.

12 reviews

4.0

12 reviews

  1. 5 stars 6
  2. 4 stars 3
  3. 3 stars 0
  4. 2 stars 3
  5. 1 stars 0

  1. Niki D.

    Seems great, I plan to use it for my graduation project

    Customer photo by Niki D.

  2. Jared H.

    The workflow of the template is efficient for my day-to-day use

  3. Brian B.

    Very well done. Looks like quite a bit of planning went into this, so it's appreciated. Worth the price!

  4. Ana O.

    I loved this tool. it made my process easier and faster, It cut the time I spent doing in half and I could be more thankful.

  5. Erin L.

    I think the best thing about the template was line weights. In the USA, it's not normal to have different symbols for different scales, so it would be very helpful to have a video that walks you through how best to use them. Thanks a bunch!

  6. Adnane D.

    I would prefer that you include also views templates

  7. Jessica C.

    Looks great, and easy to use!

  8. G.

    Nice Template! <3

  9. Solape Abdul-azeez S.

    Great

  10. Julie C.

    there should be a separate template for the US set up already with the correct dimensions. I was surprised that I needed to make adjustments before I could begin.

  11. Sean R.

    Files seemed to only be in metric while it was advertised that it the templates would be in metric and imperial.

  12. Márcio B.

    I was expecting more from this template

Questions

Which versions does it work with?

Revit 2019 or later. Revit runs on Windows; on a Mac it needs a Windows environment.

Metric or imperial?

The template is in metric units only. Working in imperial? Email us before you buy and we will tell you exactly what the file contains. The title blocks come in both sheet systems: A1, A2, A3 and Arch D, Arch C, Tabloid.

Is it a course on how to use Revit?

No. It is a project template. You need Revit installed and a working knowledge of it. The starter guide covers installation and styling, step by step.

Can I use it on paid client work?

Yes. Every purchase includes a commercial licence: unlimited projects, for as long as you like, for one person. You may not resell, share or redistribute the files. Full text on the Licence page.

What if it is not right for me?

Fourteen days. If the file does not open, or if it is not what the product page described, we refund you in full. Write to contact@architectureparadise.com.
