All-in-One ArchiCad Template

What you will get:

1. ArchiCAD Template File (23 or Later)

• Metric & Imperial (you can easily change units).

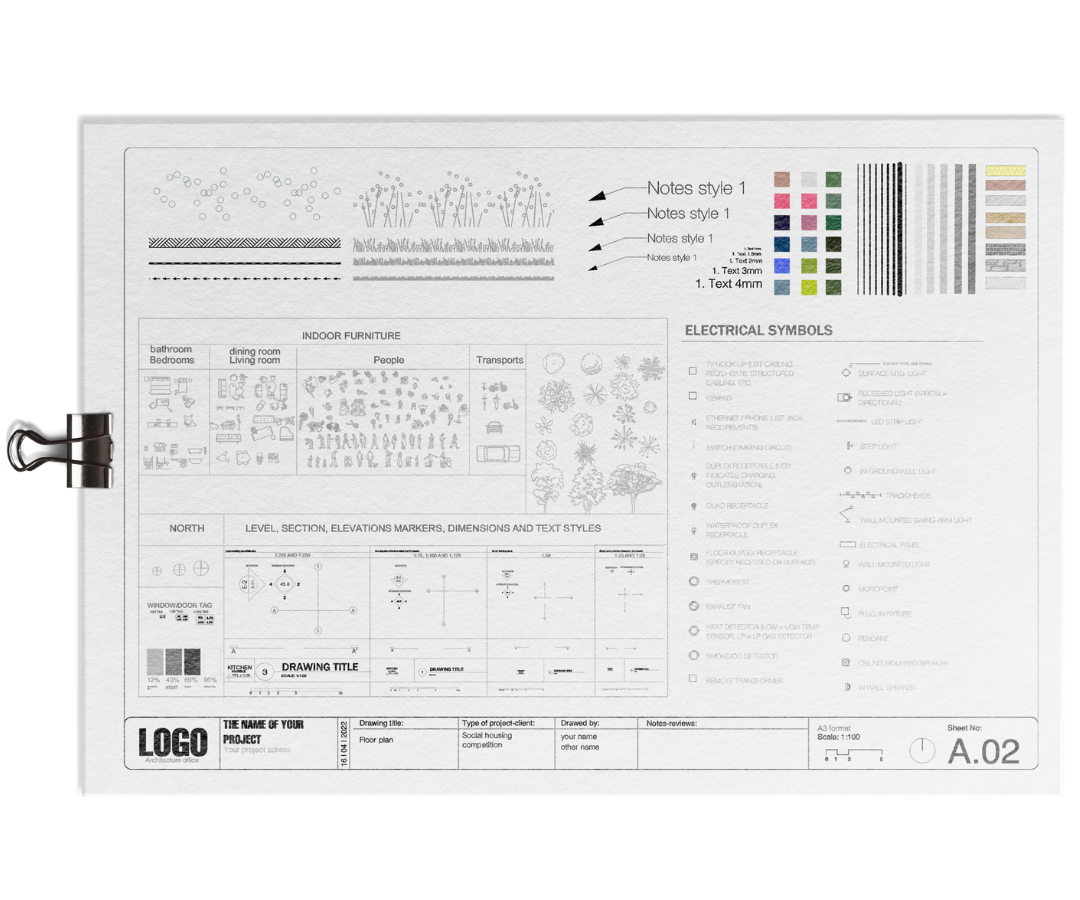

• This also includes a thorough general notes sheet with project info, symbols legend, abbreviations, drawing lists, and all in 4 different scales and more.
• Dimensions and text styles in 5 different scales. Horizontal and vertical style.
• Line styles for grass, trees, cuts, diagrams, and details information.
• Level, section, elevation markers and north points for all scales sizes.
• More than 200 ultra high-quality blocks (Furniture + environment, trees + doors, windows (dynamic) + people blocks).
• Dynamic scales bars for the layout sheets.
• Same style norths for the layout sheets.
• Text annotation styles for all scale sizes. (Metric or Imperial)

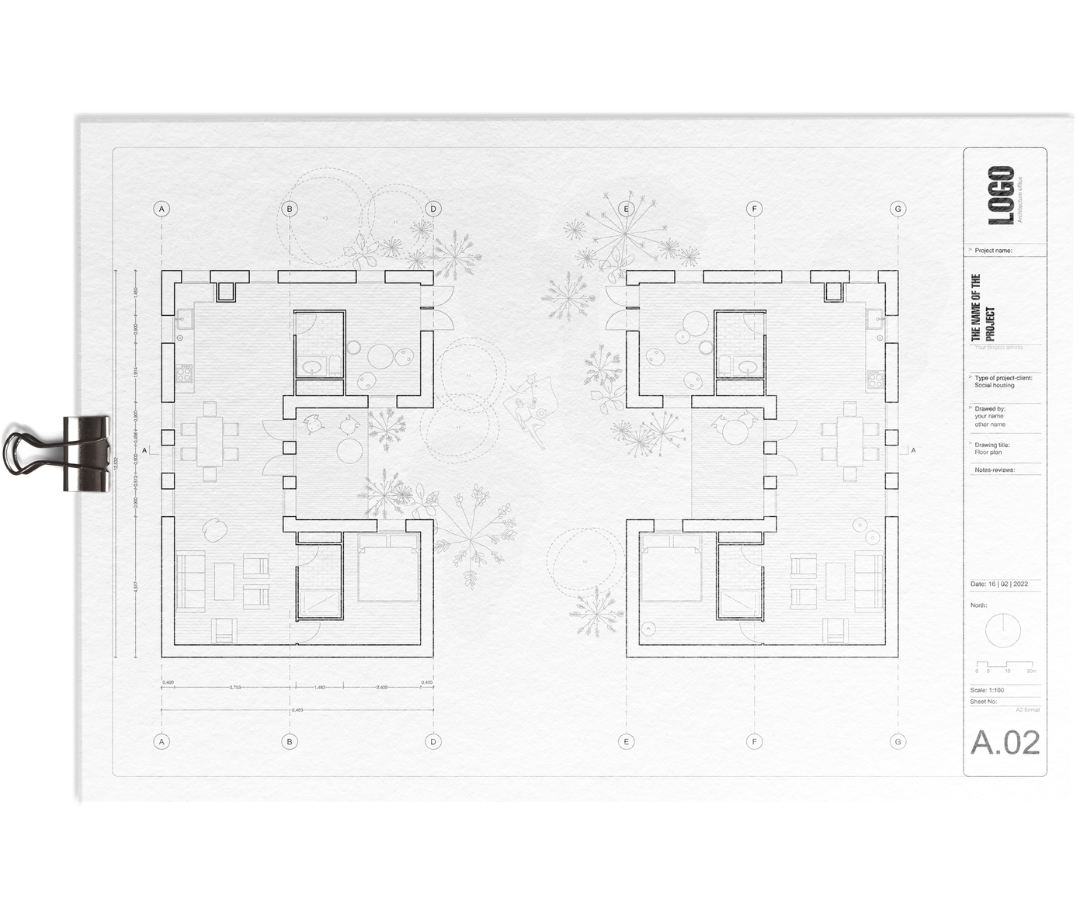

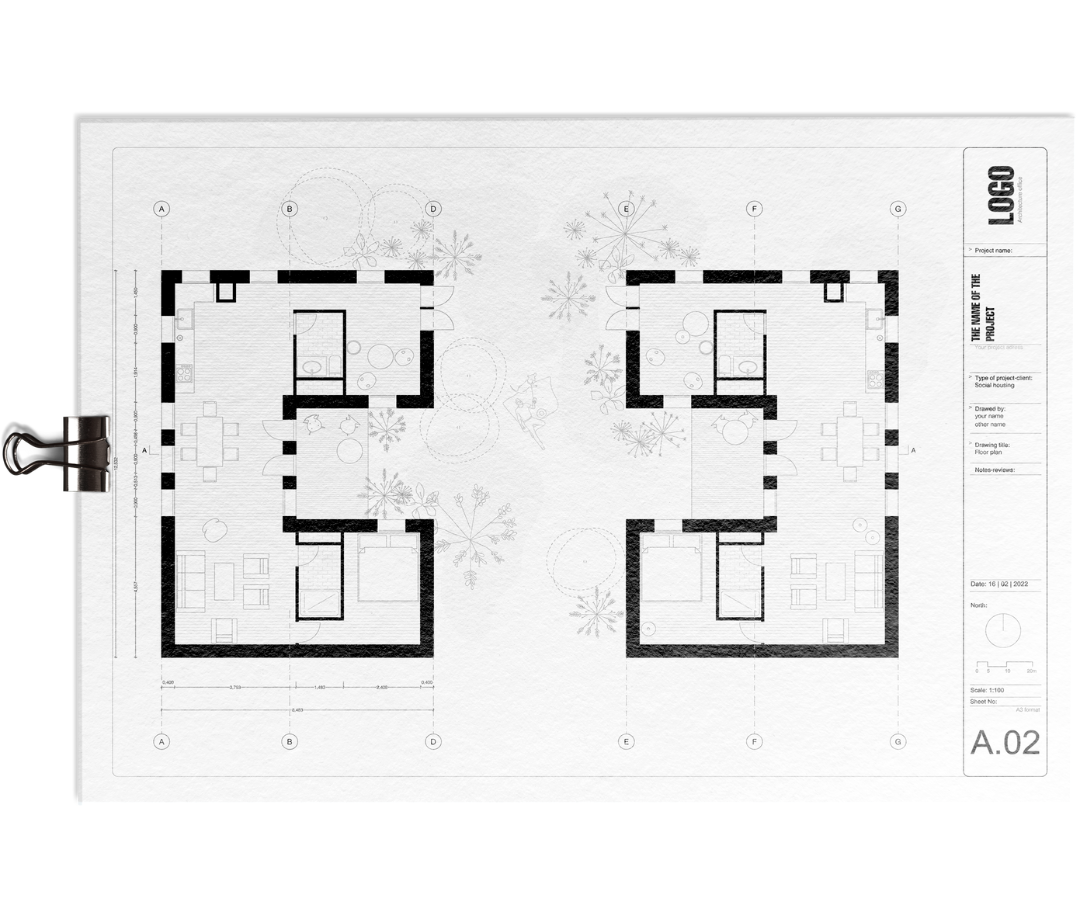

• Sample project: small sample floor plan, lines layout.
• Electrical Project template: Small sample floor plan, model components (2D), styling, linetypes and notes, 30 electrical + lighting components: outlets, recessed, surface lights, fans, smoke detectors, electrical panels + more. Electrical symbols legend, general notes, and ready to use Lighting Fixture schedule. Electrical plan and RCP view template.

2. Color palette styles and thicknesses in all scales and textures for details:

• Preset pen settings, widths, and colors according to the layers ready for installation and printing. You only need to change the scale and the thicknesses change automatically, always keeping a minimalist and clear style.
• Each line changes according to the drawing element, such as structure, walls, or floor textures or ambiance.
• Keep all your plans clean and simple and always with the same minimalist style.

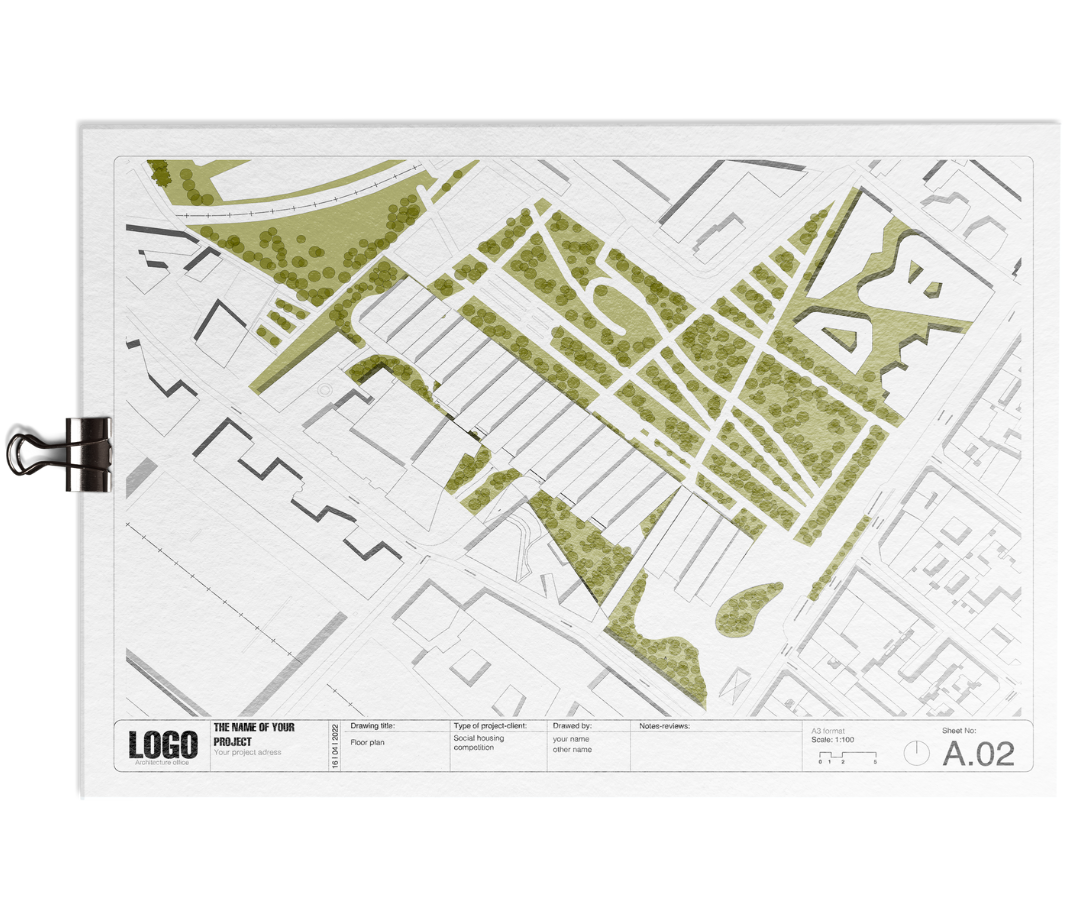

• Make color as well as black and white plans: Each palette has two versions of color type per scale, you only need to choose if you want to make your master plans for example in color with the vegetation in green. All in one click.

3. Dark mode for your workspace:

• In one click, take care of your eyes with the black and white dark work mode.

4. Layout Sheets ready to modify and print!

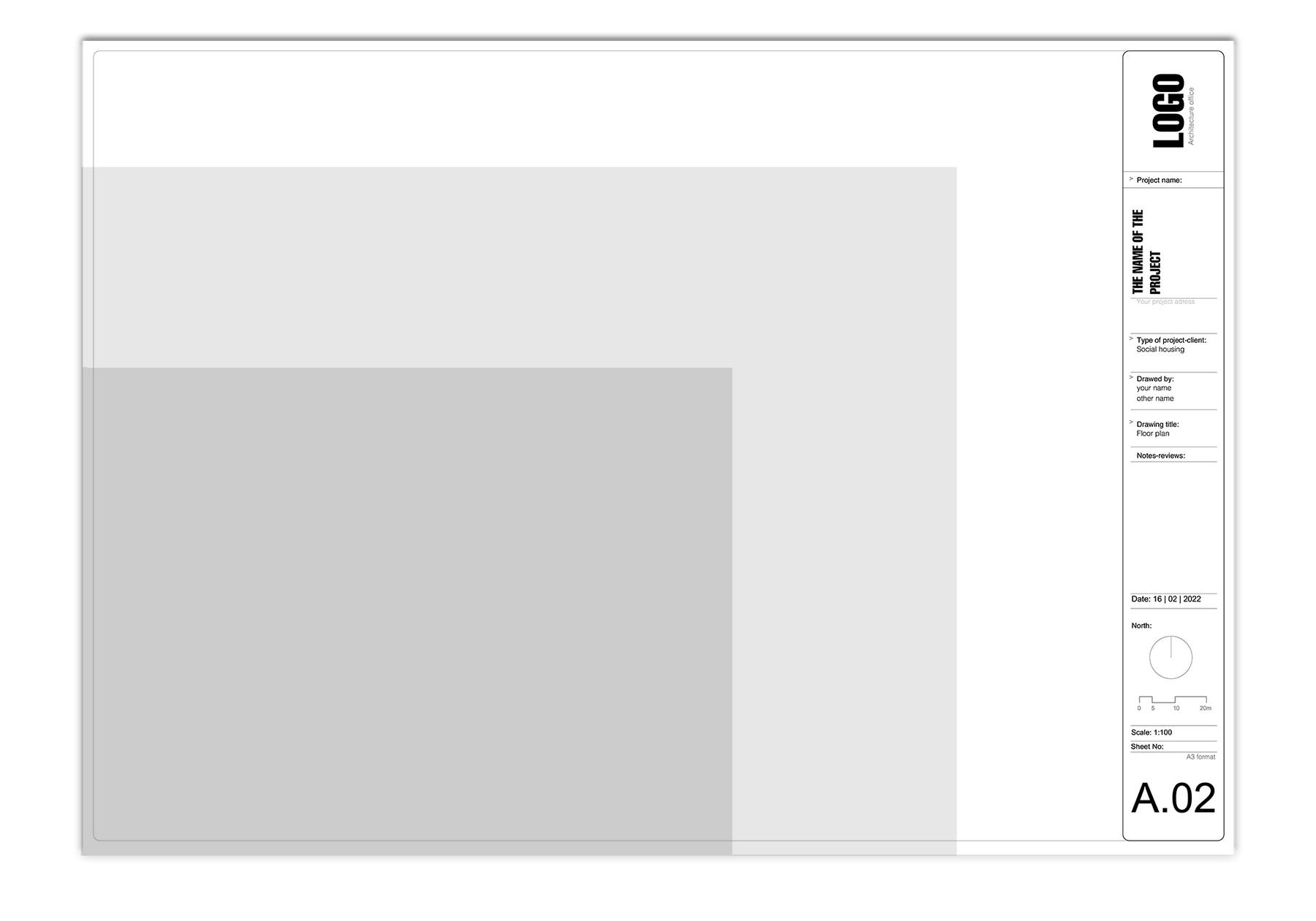

• Predesigned, minimalist title block families include three each of the most common metric sizes. Plus, matching cover sheets in four sizes. Simply add your logo + branding and these simple, clean layouts are ready for plotting.

5. Metric title blocks (landscape format):

• A1 (841mm x 594 mm)
• A2 (594mm x 420mm)
• A3 (420mm x 297mm)

5. Ebook Guide (PDF) - Installation & styling instructions

• A complete guide that explains how to use your new complete Revit template step by step, with tips and tricks to help you put a stop to time wasting!
